Vibratory Plate 24" Wide

Start date: *

End date: *

Weekly :

$0.00

Qty:

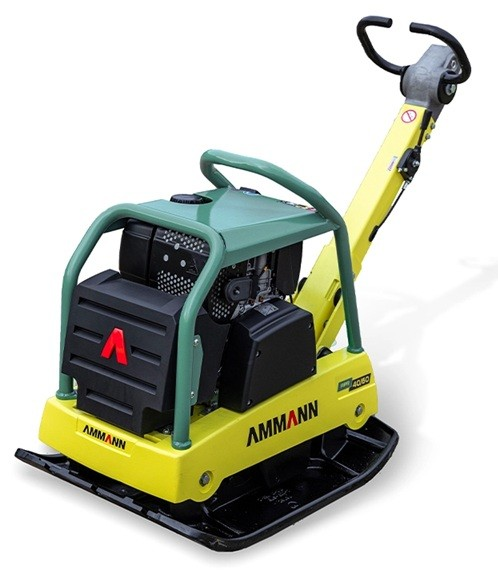

The Ammann APR 40/60 is a powerful, easy‑to‑handle reversible plate compactor built for fast and efficient compaction on a wide variety of jobsites. Weighing 580 lbs and delivering 9,442 lbf of impact force, it provides excellent compaction depth and consistent results. Easy to control with forward and reverse hydrostatic drive, and a neutral position allowing for on the spot compaction. The low‑vibration guide handle helps reduce operator fatigue during longer runs. Capable of quick directional changes and made for efficient compaction even in tight and challenging areas.

Overview

Full Description

Specifications

Engine	Honda GX‑series gasoline engine, 8 hp. Recoil start. Air‑cooled, single‑cylinder. Unleaded fuel. Integrated low‑oil shutdown.
Centrifugal Force	9,442 lbf
Operating Weight	580 lb
Plate Width	23.6 in
Travel Speed	Up to 82 ft/min depending on material
Compaction Performance	Suitable for soil, gravel, and paver bedding layers. Strong compaction depth with consistent surface finish.
Vibratory System	Enclosed exciter for reduced contamination and longer service intervals. Wear‑resistant ductile iron base plate.
Handle & Controls	Low‑vibration guide handle. Forward, reverse, and spot compaction control lever. Foldable handle for transport.
Dimensions	Length approx. 55–60 in (varies with handle). Width 23.6 in. Height approx. 40 in.
Transport	Integrated lifting point. Optional transport wheels depending on configuration.
Applications	Soil and gravel compaction, trench backfill, foundation prep, paver installation, and general medium‑duty compaction work.
