Dino 72 RXT

Start date: *

End date: *

Daily :	$680.00
Weekly :	$2,800.00
Monthly :	$8,600.00

Qty:

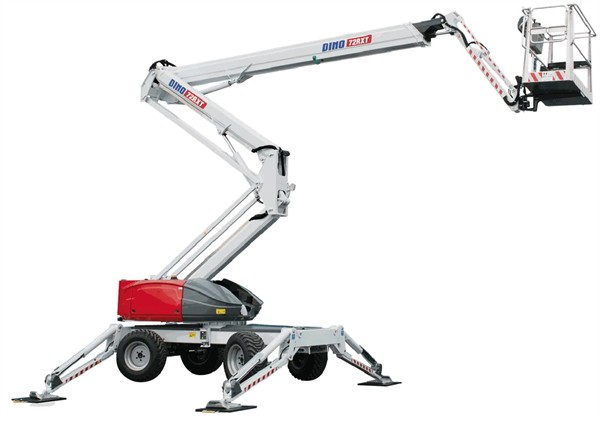

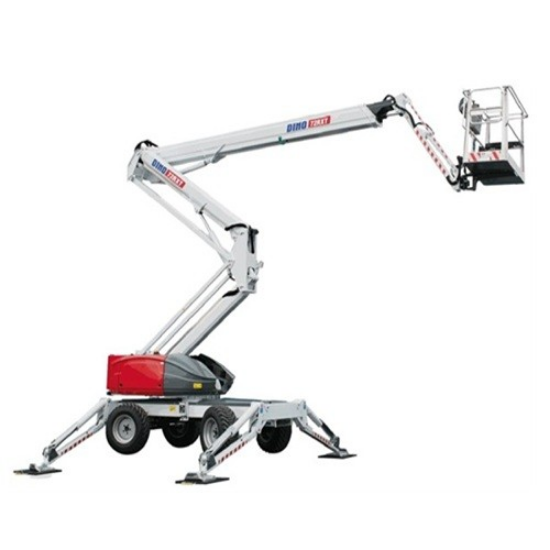

The DINO 72RXT is a lightweight, rough‑terrain articulating boom lift engineered for exceptional reach, fast setup, and superior off‑road capability. With a 72 ft 2 in working height and up to 39 ft 4 in outreach, it delivers strong boom performance supported by a fly‑jib with 140° rotation for precise positioning. Its oscillating front axle, 4WD with multiple steering modes (2WS/4WS/Crab), and 40% gradeability provide excellent mobility on uneven or soft ground. The lift features automatic leveling up to 8°, low ground pressure, and an easy‑entry basket fully operable from the platform, enhancing both safety and user convenience. Powered by a fuel‑efficient Kubota diesel engine. The 72RXT is designed with user-friendly controls and made for reliable performance across demanding outdoor applications.

20' Tilting Trailer included, Requires 2-5/16" trailer ball and 3/4 ton or larger truck.

Overview

Full Description

20' Tilting Trailer included, Requires 2-5/16" trailer ball and 3/4 ton or larger truck.

Specifications

Performance & Reach	Dimensions, Power & Drive
Max Working Height: 72 ft 2 in	Transport Length: 20 ft 10 in
Max Platform Height: 65 ft 7 in	Transport Width: 81 in (6 ft 9 in)
Max Outreach: 39 ft 4 in	Transport Height: 7 ft 9 in
Up‑and‑Over Height: 26 ft (approx.)	Weight: 10,360 lbs
Basket Capacity: 507 lbs	Ground Clearance: 1 ft 1 in
Basket Size: 2 ft 4 in × 4 ft 3 in	Approach/Departure Angle: 33.4°
Boom Rotation: Continuous 180°	Drive: 4WD standard
Jib Rotation: 140° (5.2 ft fly‑jib)	Steering Modes: 2WS / 4WS / Crab
Automatic Leveling: Up to 8°	Gradeability: 40%
Simultaneous Boom Movements: Up to 4	Drive Speed: 6.2 mph transport / 1.7 mph work
