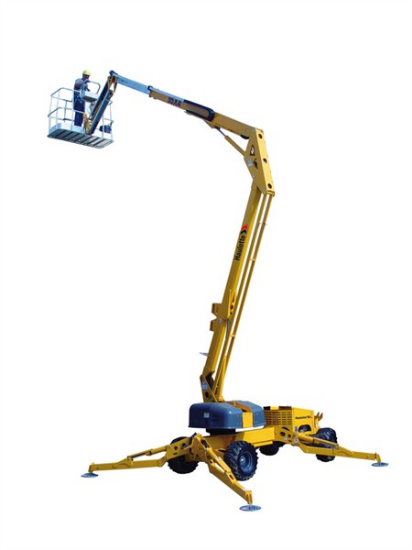

The Haulotte Bil‑Jax 55XA is a highly versatile self‑propelled boom lift designed to give customers maximum reach with minimal setup time. With a 61 ft working height and 33 ft 5 in horizontal outreach, it provides excellent access for tree work, building maintenance, lighting, signage, and general construction tasks. Hydraulic outriggers with automatic leveling let operators set up in under 30 seconds, even on uneven ground. Its lightweight design, 4WD capability, and low ground pressure allow it to go places heavier machines can’t, making it ideal for both indoor and outdoor use. The lift features a 450‑lb platform capacity, 150° jib articulation, and a dual‑power system (gas engine + DC electric) for quiet operation in sensitive areas or strong performance outdoors. Easy to tow and simple to operate, the 55XA is a dependable, solution for customers who need height, reach, and mobility in one machine.
20' Tilting Trailer included, Requires 2-5/16" trailer ball and vehicle with adequate towing capacity
Performance & Reach
Dimensions & Power
Max Working Height: 61 ft 3 in
Stowed Length: 21 ft 2 in
Max Platform Height: 55 ft 3 in
Stowed Width: 5 ft 8 in
Horizontal Outreach: 33 ft 5 in
Stowed Height: 6 ft 9 in
Up‑and‑Over Height: 23 ft 1 in
Wheelbase: 10 ft 1 in
Platform Capacity: 450 lb
Ground Clearance: 10 in
Platform Size: 2.6 ft wide (approx.)
Operating Weight: 6,000 lb
Jib Length: 4 ft 3 in
Drive Speed: 4.8 mph
Jib Vertical Motion: 150°
Gradeability: 45%
Turntable Rotation: 350° non‑continuous
Leveling Capability: 12.5°
Outriggers: Hydraulic, auto‑level <30 sec
Tires: 26 × 12 bar‑lug
