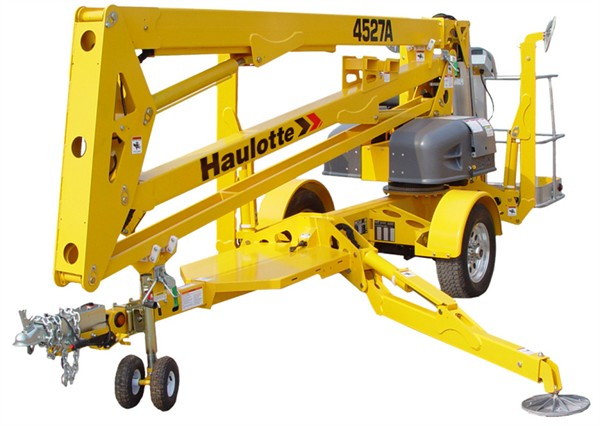

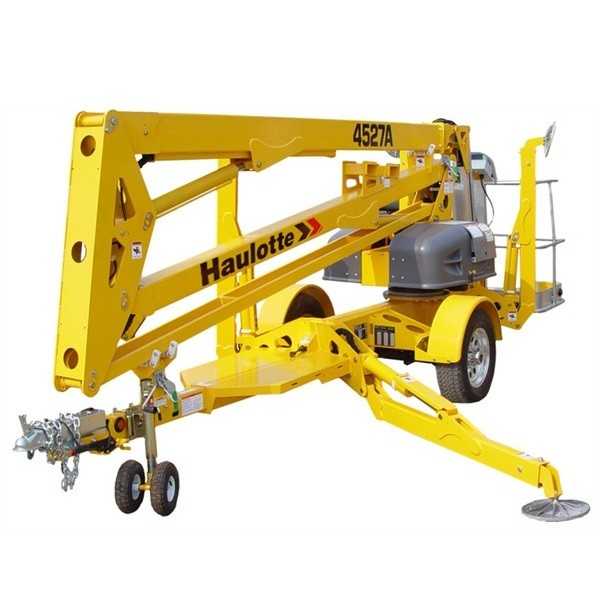

The Haulotte Bil‑Jax 4527A is a compact, towable articulating boom lift designed for easy transport, fast setup, and reliable elevated access for indoor or outdoor maintenance, construction, and landscaping work. Offering a 51‑ft working height, 45‑ft platform height, and 27‑ft horizontal outreach, it provides strong reach performance in a lightweight trailer‑mounted design that can be towed by a standard half‑ton pickup. Hydraulic outriggers with non‑marking footpads and automatic leveling allow setup in under 30 seconds, while its intuitive controls, telescopic upper boom, jib, and 500‑lb platform capacity support efficient and precise positioning. Powered by a quiet 24v battery electric system.
Performance & Reach
Dimensions, Power & Transport
Working Height: 51 ft 8 in
Stowed Height: 76.75 in
Platform Height: 45 ft
Stowed Length: 19 ft 11 in
Horizontal Outreach: 27 ft
Stowed Width: 5 ft 5.5 in
Up‑and‑Over Height: 20 ft 9 in
Total Weight: 4,065 lbs
Platform Capacity: 450 lbs
Power System: Four 6V batteries
Platform Size: 30 in × 48 in
Charger: Onboard electric charger
Turntable Rotation: 700° non‑continuous
Towable: Standard half‑ton pickup
Boom Type: Articulating w/ telescopic upper boom
CDL Required: No
Jib: Negative angle capability
Footpads: 12.5‑in non‑marking
Leveling Capability: 12.5°
Outriggers: Hydraulic, auto‑level (<30 sec)
